FIGURE 23-5 -A Rectangular Loop of Wire Carrying a Current of 2.0

question 40

Multiple Choice

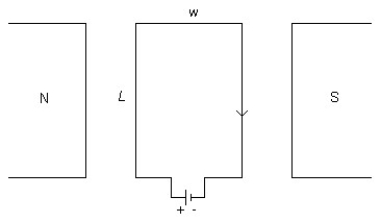

FIGURE 23-5
-A rectangular loop of wire carrying a current of 2.0 A that can rotate is placed in a magnetic field with a strength of 0.40 T as shown in Figure 23-5. The length of the loop L is 0.16 m and its width w is 0.040 m. What is the magnetic flux through the loop when the plane of the loop is perpendicular to the magnetic field?

• A) 13 × 10^-3 T∙ m²
• B) -2.6 × 10^-3 T∙ m²
• C) 0.80 T∙ m²
• D) 2.6 × 10^-3 T∙ m²
• E) 0 T∙ m²
