Which Statement Is True with Regard to the Circuit Shown

question 24

Multiple Choice

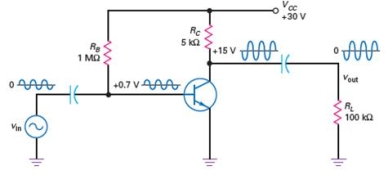

Which statement is true with regard to the circuit shown in Figure 8-4?

• A) the ac signal out of the transistor is amplified and inverted
• B) the ac signal out of the transistor is amplified and in-phase with the input
• C) the ac signal out of the transistor is not amplified
• D) the ac signal out of the transistor is attenuated

---
