In the Circuit Shown in Figure 8-30,if the Collector Voltage

question 27

Multiple Choice

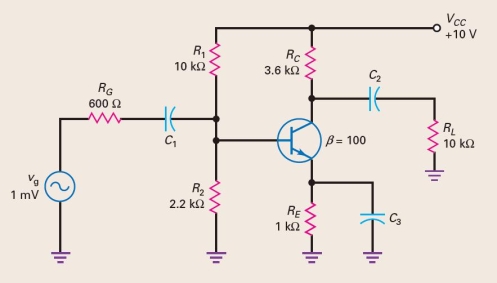

In the circuit shown in Figure 8-30,if the collector voltage is 0 V and the base voltage is 0 V,what is the trouble?

• A) 1 mV generator open
• B) C₁ open
• C) C₃ shorted
• D) +10 V supply is faulty

---
