In the Circuit Shown in Figure 7-26,if R₁ Opens

question 4

Multiple Choice

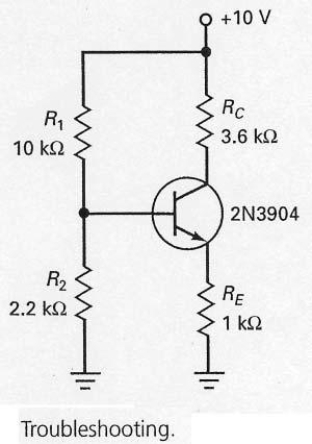

In the circuit shown in Figure 7-26,if R₁ opens

• A) the collector voltage will be 10 V.
• B) the collector voltage will be 0 V.
• C) the base voltage will be 10 V.
• D) the emitter voltage will be 10 V.

---
