While Troubleshooting the Circuit Shown in Figure 7-26,the Base Voltage

question 2

Multiple Choice

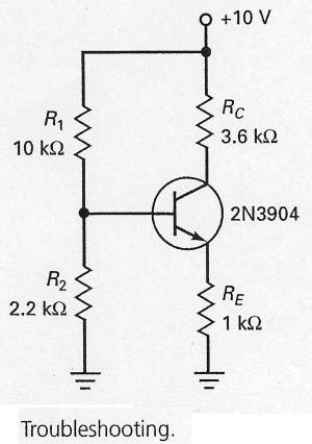

While troubleshooting the circuit shown in Figure 7-26,the base voltage measures 1.8 V and the collector voltage measures 10 V,what should the technician do?

• A) replace the transistor
• B) replace R_E
• C) check R₁
• D) check voltage source and leads

---
