In Order to Calculate the Base Voltage for the Circuit

question 46

Multiple Choice

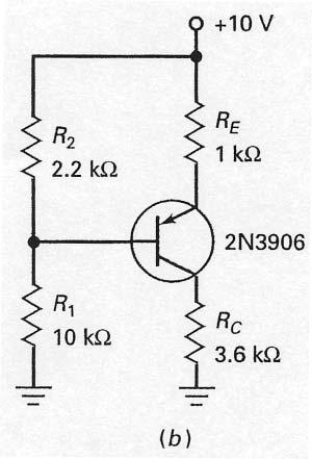

In order to calculate the base voltage for the circuit shown in Figure 7-29 (b)

• A) divide R₂ by the sum of R₁ and R₂ and then multiply by 10 V.
• B) divide R₁ by the sum of R₁ and R₂ and then multiply by 10 V.
• C) divide R_C by the sum of R_E and R_C and then multiply by 10 V.
• D) divide R_E by the sum of R_E and R_C and then multiply by 10 V.

---
