Once the Base Voltage Has Been Calculated for the Circuit

question 10

Multiple Choice

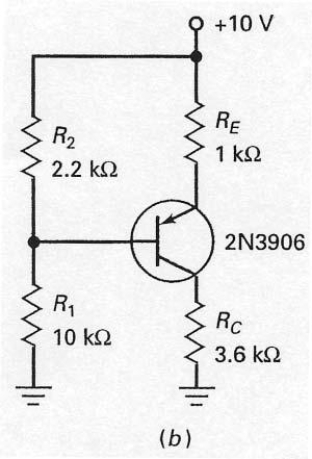

Once the base voltage has been calculated for the circuit shown in Figure 7-29 (b) ,emitter voltage can be calculated by

• A) adding 0.7 V to the base voltage.
• B) subtracting 0.7 V from the base voltage.
• C) adding 0.3 V to the base voltage.
• D) subtracting 0.3 V from the base voltage.

---
