The E-R Diagram Below Represents a B/AR/CR Process but with the Names

question 123

Essay

The E-R diagram below represents a B/AR/CR process but with the names of certain entities, and relationship cardinalities removed from the diagram.In alphabetic order, the names omitted are:
$\bullet$ BANKS
$\bullet$ CASH_RECEIPTS
$\bullet$ CUSTOMERS
$\bullet$ DEPOSITS
$\bullet$ INVENTORY
$\bullet$ SALES_INVOICES
$\bullet$ SALES_ORDERS
$\bullet$ SHIPMENTS
Required:
Complete The E-R Diagram (TB Figure 11.12) by:
a.Inserting the names from the above lists into the boxes where they belong.
b.Inserting a 1 or an M or an N where necessary to indicate whether the cardinality of the relationship is: one-to-one (1:1), one-to-many (1:M), or many-to-many (M:N).

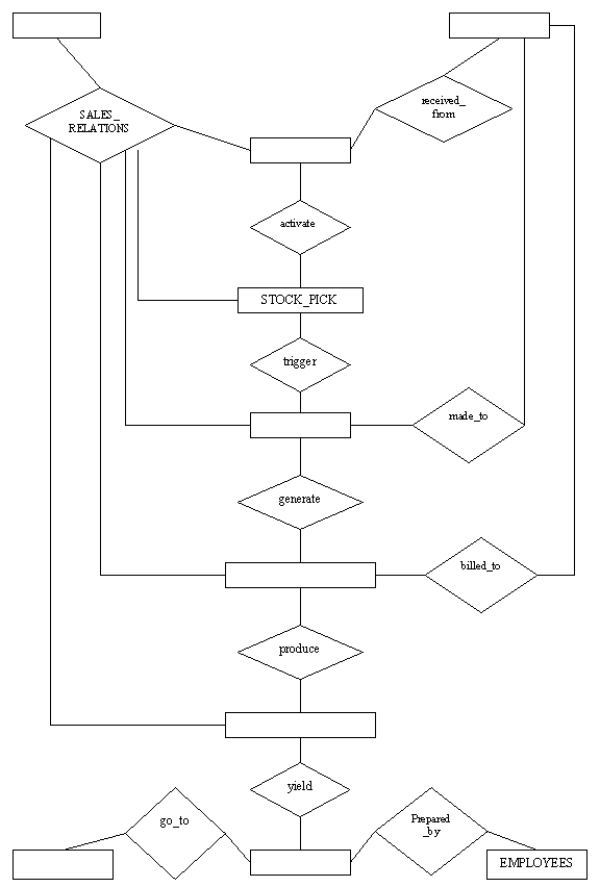

TB Figure 11.12

---
