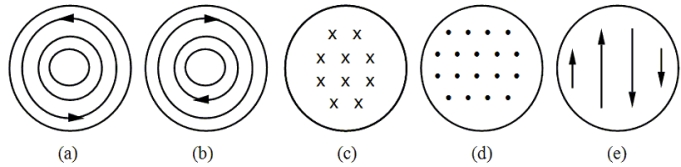

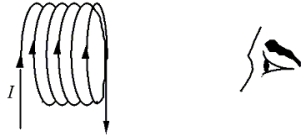

A coil of wire carries current I as shown in the figure. If the observer could "see" the magnetic field inside this arrangement of loops, how would it appear?
