The Figure Shows a Circuit $\varOmega$ R₂ = R₃ = 2 $\varOmega$

question 16

Multiple Choice

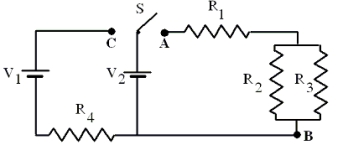

The figure shows a circuit. The switch S can be closed on either point A or C, but not both at the same time. Use the following quantities:
V₁ = V₂ = 12 V
R₁ = R₄ = 1.0 $\varOmega$
R₂ = R₃ = 2.0 $\varOmega$
-At what rate is energy dissipated by R₁ when the switch S is closed on A?

• A)1 W
• B)4 W
• C)9 W
• D)36 W
• E)144 W

---
