In the Circuit Shown,R1 = 9 $\varOmega$ ,R2 = 140 $\varOmega$ ,R3 = 250

question 30

Multiple Choice

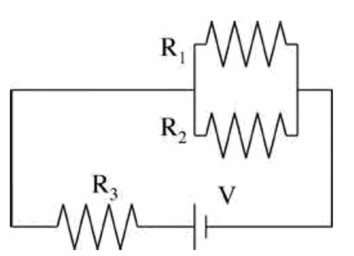

In the circuit shown,R1 = 9.00 $\varOmega$ ,R2 = 14.0 $\varOmega$ ,R3 = 2.50 $\varOmega$ ,and V = 16.0 V.Find the total power dissipated in the circuit (in W) .

• A)10.53
• B)15.26
• C)22.13
• D)32.09
• E)46.53

---
