Four Resistors Are Connected Across an Ideal Dc Source of V

question 42

Multiple Choice

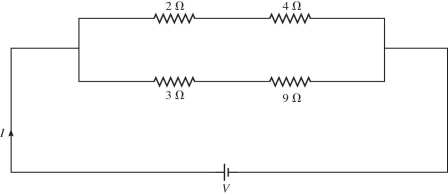

Four resistors are connected across an ideal dc source of V = 8.0 V, as shown in the figure. Assume all resistances shown are accurate to two significant figures. What is the current through the 9.0-Ω resistor?

• A) 1.0 A
• B) 0.67 A
• C) 0.50 A
• D) 0.90 A
• E) 2.0 A

---
