A Light Bulb Is Connected in the Circuit Shown in the Figure

question 50

Multiple Choice

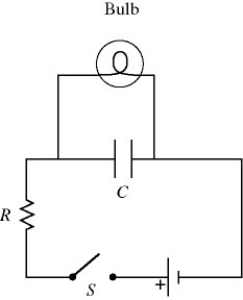

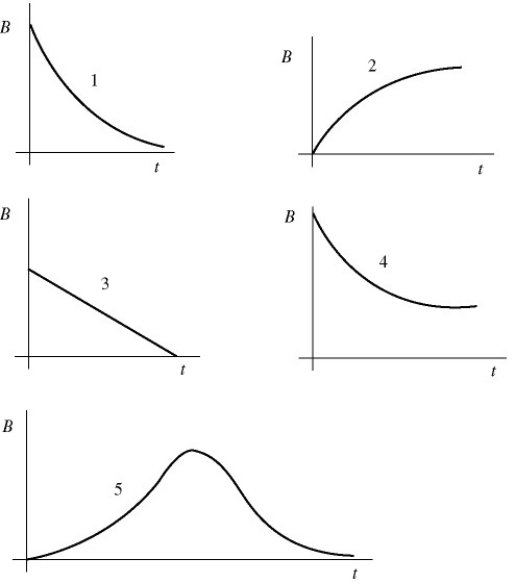

A light bulb is connected in the circuit shown in the figure with the switch S open and the capacitor uncharged.The battery has no appreciable internal resistance.Which one of the following graphs best describes the brightness B of the bulb as a function of time t after closing the switch?

• A) 1
• B) 2
• C) 3
• D) 4
• E) 5

---
