The 60-Hz Ac Source of a Series Circuit Has a Voltage

question 23

Multiple Choice

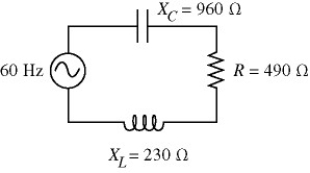

The 60-Hz ac source of a series circuit has a voltage amplitude of 120 V.The resistance,capacitive reactance,and inductive reactance are as shown in the figure.What is the rms current in the circuit?

• A) 0.097 A
• B) 0.11 A
• C) 0.12 A
• D) 0.14 A
• E) 0.17 A

---
