The 60 Hz Ac Source of a Series Circuit Has

question 25

Multiple Choice

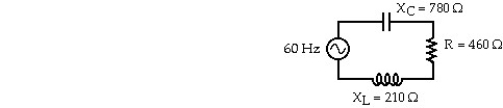

The 60 Hz ac source of a series circuit has a voltage amplitude of 120 V.The capacitive and inductive reactances are 780 Ω and 210 Ω.respectively.The resistance is 460 Ω.In the figure,the rms current in the circuit is closest to:

• A)0.12 A
• B)0.13 A
• C)0.14 A
• D)0.16 A
• E)0.18 A

---
