A Series AC Circuit Is Shown

question 26

Multiple Choice

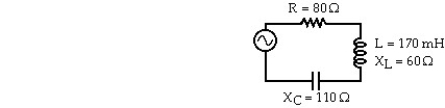

A series AC circuit is shown.The inductor has a reactance of 60 Ω and an inductance of 170 mH.A 80 Ω resistor and a capacitor whose reactance is 110 Ω are also in the circuit.The rms current in the circuit is 1.6 A.In the figure,the voltage amplitude across the capacitor is closest to:

• A)250 V
• B)180 V
• C)320 V
• D)390 V
• E)110 V

---
