A 186-Kg Block Is Held in Place Against the Spring by by a 81-N

question 9

Multiple Choice

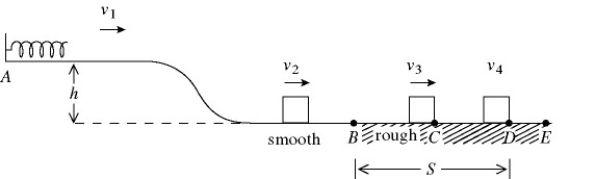

A 1.86-kg block is held in place against the spring by a 81-N horizontal external force (see the figure) . The external force is removed, and the block is projected with a velocity v₁ = 1.2 m/s upon separation from the spring. The block descends a ramp and has a velocity v₂ = 1.9 m/s at the bottom. The track is frictionless between points A and B. The block enters a rough section at B, extending to E. The coefficient of kinetic friction over this section is 0.28. The velocity of the block is v₃ = 1.4 m/s at C. The block moves on to D, where it stops. The height h of the ramp is closest to

• A) 11
• B) 7.3
• C) 15
• D) 17
• E) 18

---
