In the Above Circuit $\varepsilon$ ₁ = 9 V $\varepsilon$ ₂ = 6 V, And

question 106

Multiple Choice

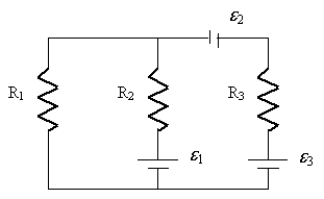

In the above circuit, $\varepsilon$ ₁ = 9 V, $\varepsilon$ ₂ = 6 V, and $\varepsilon$ ₃ = 6 V. Also R₁ = 25 $\Omega$ , R₂ = 125 $\Omega$ , and R₃ = 55 $\Omega$ . Find the current flowing through R₃.

• A) 0.60 A
• B) 0.072 A
• C) 0.68 A
• D) 0.36 A
• E) 0.020 A

---
