An Open Switch in an RL Circuit Is Closed at Time

question 8

Multiple Choice

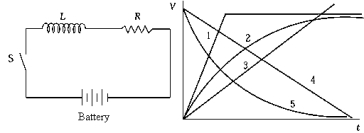

An open switch in an RL circuit is closed at time t = 0, as shown. The curve that best illustrates the variation of potential difference across the resistor as a function of time is

• A) 1
• B) 2
• C) 3
• D) 4
• E) 5

---
