A Flywheel of Radius R Is Driven by a Reciprocating

question 27

Multiple Choice

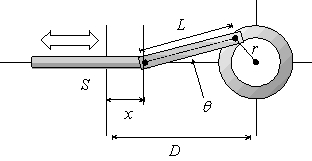

A flywheel of radius r is driven by a reciprocating shaft S and a linking arm L (see figure below) . If x represents the displacement of the shaft from its leftmost position, then the angle between the linking arm and the centerline of the shaft is . Find the maximum value of .

---
