Which of the Following Figures Illustrates Best the Sequence of the Free-Energy

question 28

Multiple Choice

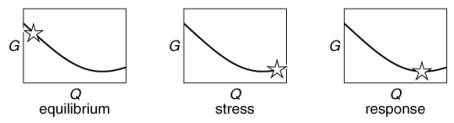

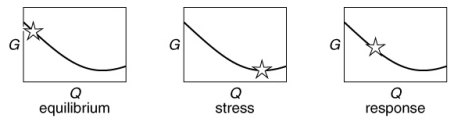

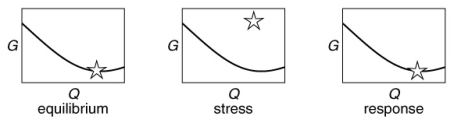

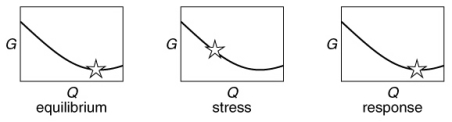

Which of the following figures illustrates best the sequence of the free-energy values (shown with the star) for a chemical reaction at equilibrium to the removal of products, followed by the response of the equilibrium to this stress?

---
