The Graph in the Figure Shows a Cycle for a Heat

question 7

Multiple Choice

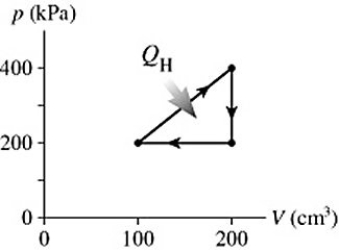

The graph in the figure shows a cycle for a heat engine for which =35 J.What is the thermal efficiency of this engine?

• A)29 %
• B)57 %
• C)14 %
• D)23 %

---
