Figure 3 the Transistor Has the Following Ratings: P_D(max)= 650

question 18

Multiple Choice

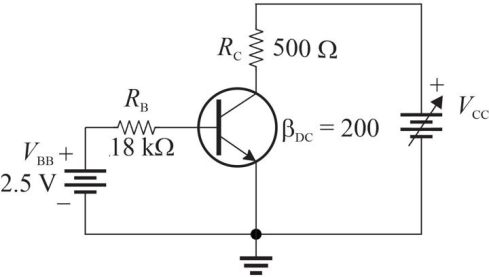

Figure 3 The transistor has the following ratings: P_D(max) = 650 mW, V_CE(max) = 40 V, and I_C(max) = 200 mA.
-Refer to Fig 3. Assume VCC is lowered to 15 V. The transistor is

• A)saturated
• B)in the linear range
• C)cutoff

---
