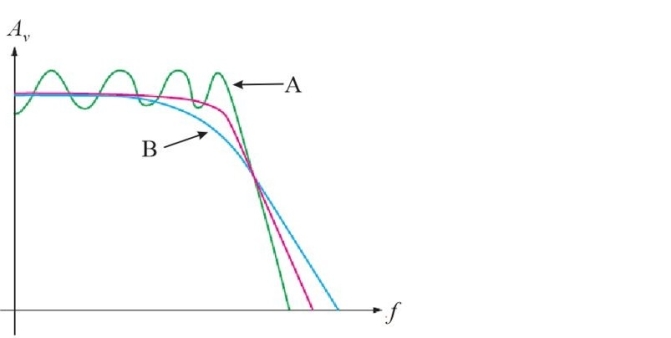

Figure 5 Response Curve for Three Different Filters

question 1

Multiple Choice

Figure 5 Response curve for three different filters
-Refer to Figure 5. The response labeled "A" represents a

• A)Butterworth response
• B)Bessel response
• C)Chebyshev response
• D)none of the above

---

Definitions:

Resistors

Electronic components designed to introduce a specific amount of resistance to an electrical current, used in circuits to manage current flow.

Inductance

A property of an electrical conductor by which a change in current flowing through it induces an electromotive force both in itself (self-inductance) and in nearby conductors (mutual inductance).

Capacitors

Components in electrical circuits that store and release electrical energy, characterized by their capacitance value, which measures the ability to store charge per voltage unit.

Poles

In electrical engineering, the term refers to the individual magnetic or electrical points that create fields within devices such as motors, or represent the terminals of a battery or generator.
