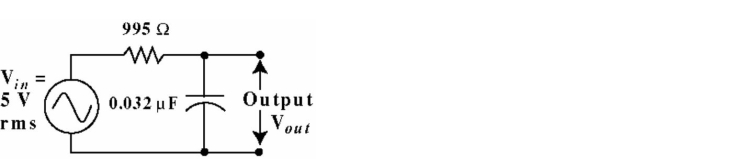

Figure 18-3

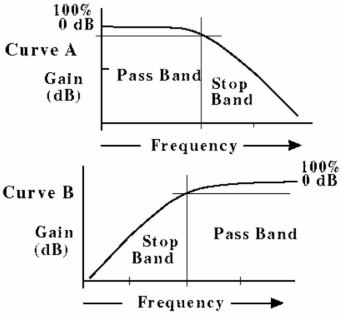

Figure 18-4
-Which of the two response curves in Figure 18-4 A or B) represents the response of the circuit in Figure 18-3?
