Kirchhoff's Rules: a Multiloop Circuit Is Shown in the Figure

question 51

Multiple Choice

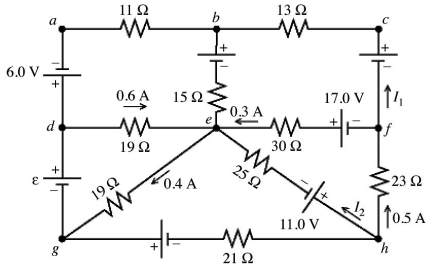

Kirchhoff's rules: A multiloop circuit is shown in the figure. Some circuit quantities are not labeled. It is not necessary to solve the entire circuit. The current I₂ is closest to

• A) +0.1 A.
• B) +0.3 A.
• C) +0.5 A.
• D) -0.1 A.
• E) -0.3 A.

---
