In the Accompanying Figure, Transistor ____ Is Connected in Series

question 10

Multiple Choice

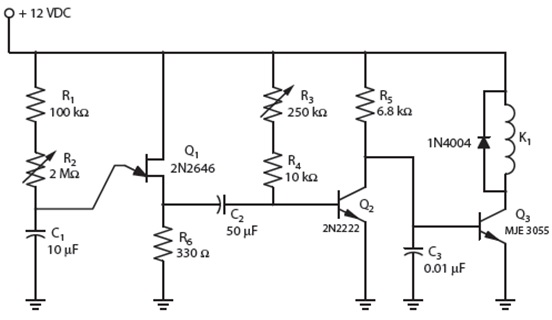

In the accompanying figure, transistor ____ is connected in series with K1, which is the coil of a 12- volt DC relay.

• A) Q1
• B) Q3
• C) C1
• D) C3

---
