A Multiloop Circuit Is Shown in the Figure

question 18

Multiple Choice

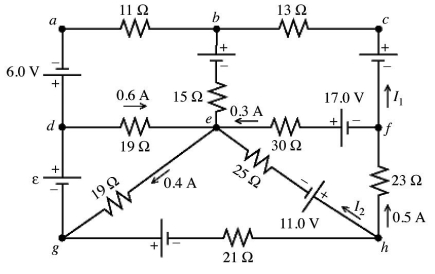

A multiloop circuit is shown in the figure.Some circuit quantities are not labeled.It is not necessary to solve the entire circuit.The emf ε is closest to

• A) +3 V.
• B) +19 V.
• C) -3 V.
• D) -10 V.
• E) -1 V.

---
