Four Resistors Are Connected Across an Ideal Dc Source of V

question 141

Multiple Choice

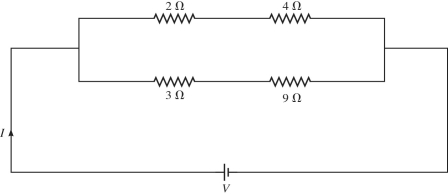

Four resistors are connected across an ideal dc source of V = 8.0 V,as shown in the figure.Assume all resistances shown are accurate to two significant figures.What is the current through the 9.0-Ω resistor?

• A)1.0 A
• B)0.67 A
• C)0.50 A
• D)0.90 A
• E)2.0 A

---
