Reaction Forces Are Given in Terms of Load Variable P

question 1

Multiple Choice

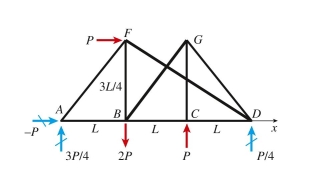

Reaction forces are given in terms of load variable P for the truss below (see boxed expressions next to reaction force arrows) . The force in member FD is:

• A) 1.76P
• B) 21.76P
• C) 22.14P
• D) 24.24P

---
