In the Circuit Shown Below, Let Use Mesh Analysis to Find Mesh Currents

question 2

Essay

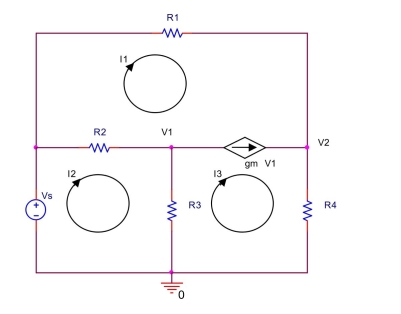

In the circuit shown below, let $$\mathrm { V } _ { \mathrm { s } } = 9 \mathrm {~V} , \mathrm { R } _ { 1 } = 1 \mathrm { k } \Omega , \mathrm { R } _ { 2 } = 400 \Omega , \mathrm { R } _ { 3 } = 500 \Omega , \mathrm { R } _ { 4 } = 1.2 \mathrm { k } \Omega , \mathrm { g } _ { \mathrm { m } } = 0.0004$$
Use mesh analysis to find mesh currents $I _ { 1 } , I _ { 2 }$ , and $I _ { 3 }$ . Also, find $V _ { 1 }$ and $V _ { 2 }$ .

---
